Slide & Fold (System Aluminium Windows)
Blend of Visibility and Structural Strength
Slide & Fold (System Aluminium Windows)
Blend of Visibility and Structural Strength
Aluminium slide and fold systems are versatile window and door solutions where multiple panels glide along a track and fold into an accordion-style stack to one or both sides. This design provides a near 100% unobstructed opening, seamlessly merging indoor and outdoor spaces.
| Space-Saving Mechanism | Panels stack neatly at the end of the track, requiring minimal floor space compared to traditional swinging doors. |
|---|---|
| Expansive Views | Slim aluminium profiles allow for larger glass areas, providing panoramic views even when the system is closed. |
| Customizable Configurations | Systems can typically accommodate 2 to 11 panels depending on the opening width. |
| Durability | High-grade aluminium (often 6063-T6 or 6061-T6 alloys) is resistant to warping, corrosion, and termites. |
| Thermal Performance | Modern systems often feature a "thermal break"—a non-conductive polymer bar that prevents heat transfer—to improve energy efficiency. |
| Profile Thickness | Standard residential and commercial frames typically range from 1.6mm to 2.5mm. Thinner profiles (1.2mm–1.4mm) are generally restricted to low-wind residential areas. |
| System Depth | Frame depths for slide and fold systems vary by brand, commonly ranging from 65mm to 90mm to accommodate heavy-duty folding hardware. |
| Glass & Glazing Options | 5mm (single) to 35mm (double/triple glazed). |
| Gaskets | High-performance systems use EPDM gaskets for airtight sealing and noise reduction. |
| Locking Mechanism | Multi-point locking systems provide security at several points along the frame. |

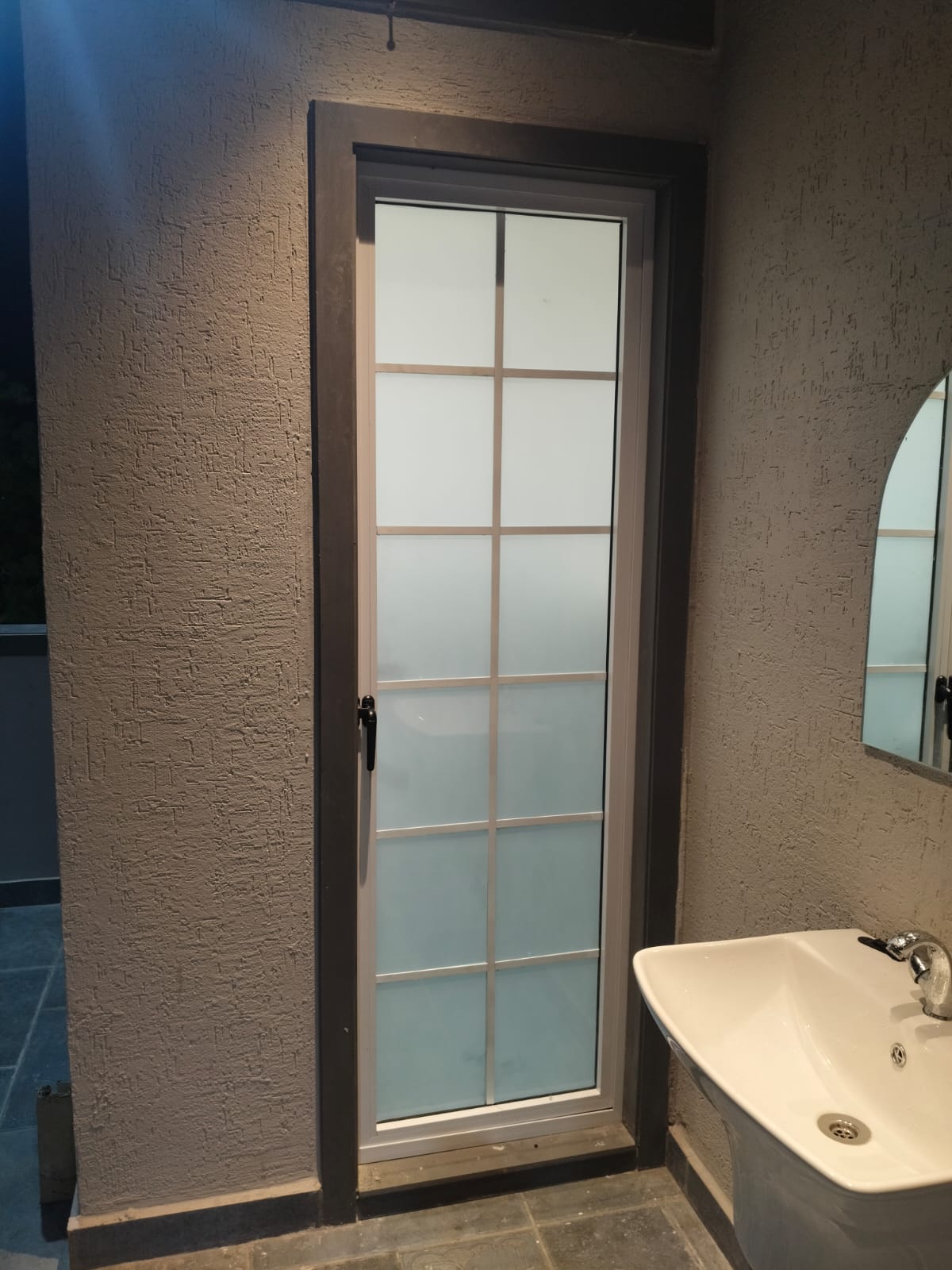

Casement Windows
Classic and Versatile Windows & Doors
Casement Windows
Classic and Versatile Windows & Doors
Casement windows are hinged on the side and swing outward or inward like a door, offering superior ventilation, panoramic views, and high energy efficiency through tight, double-sealed closures. Often used for maximum airflow (up to 90 degrees), they are secure, customizable in size, and ideal for modern, minimalist designs.
| Optimal Ventilation & View | Because they open fully, casement windows allow maximum airflow. |
|---|---|
| Energy Efficiency | When closed, the sash seals tightly against the frame, often using multi-point locking mechanisms to prevent air leakage. |
| Design Flexibility | Available in single or double-pane options, they can be designed to match various aesthetics. |
| Security | Multi-point locks and steel reinforcement (especially in uPVC models) offer enhanced security. |
| Ease of Use | They are operated via a crank, lever, or handle, allowing them to be opened or closed easily. |
French Door
Minimum Frame | Maximum Security
French Door
Minimum Frame | Maximum Security
A French Door GI refers to a French-style door (characterized by large glass panels) constructed with a Galvanized Iron (GI) frame. This material choice offers a durable, rust-resistant, and high-security alternative to traditional wood or aluminum frames. Galvanized Iron (GI) French doors are engineered for durability, security, and weather resistance, typically featuring a hollow section frame with glass infill.
| Material | Built from high-quality galvanized steel sheets that are bent, welded, and often powder-coated for a sleek, weather-resistant finish. |
|---|---|
| Aesthetics | Combines the classic elegance of full-length glass panes with the industrial strength of metal. |
| Durability | Resistant to corrosion, extreme temperatures, and moisture, making them ideal for exterior balconies or garden entrances. |
| Security | Includes multi-point locking systems from Laxmi and concealed tower bolts for enhanced safety. |
| Glass Options | Features 4mm to 5mm toughened or clear glass, sometimes in a sandwich or double-glazed configuration. |
| Frame/Shutter Material | Fabricated from 1.2 mm to 2.0 mm thick galvanized iron sheets. |
| Finish | Primarily finished with Pure Polyester powder coating for UV protection and rust resistance; common colors include White, Brown, and Antique |
| Locking Systems | Equipped with mortise locks (computerized keys) and three-way locking arrangements for high security. |
| Resistance | Designed to be fireproof, waterproof, and dustproof. |
| Climate Suitability | Specifically treated to withstand the varied wind and humidity conditions of the Indian subcontinent. |

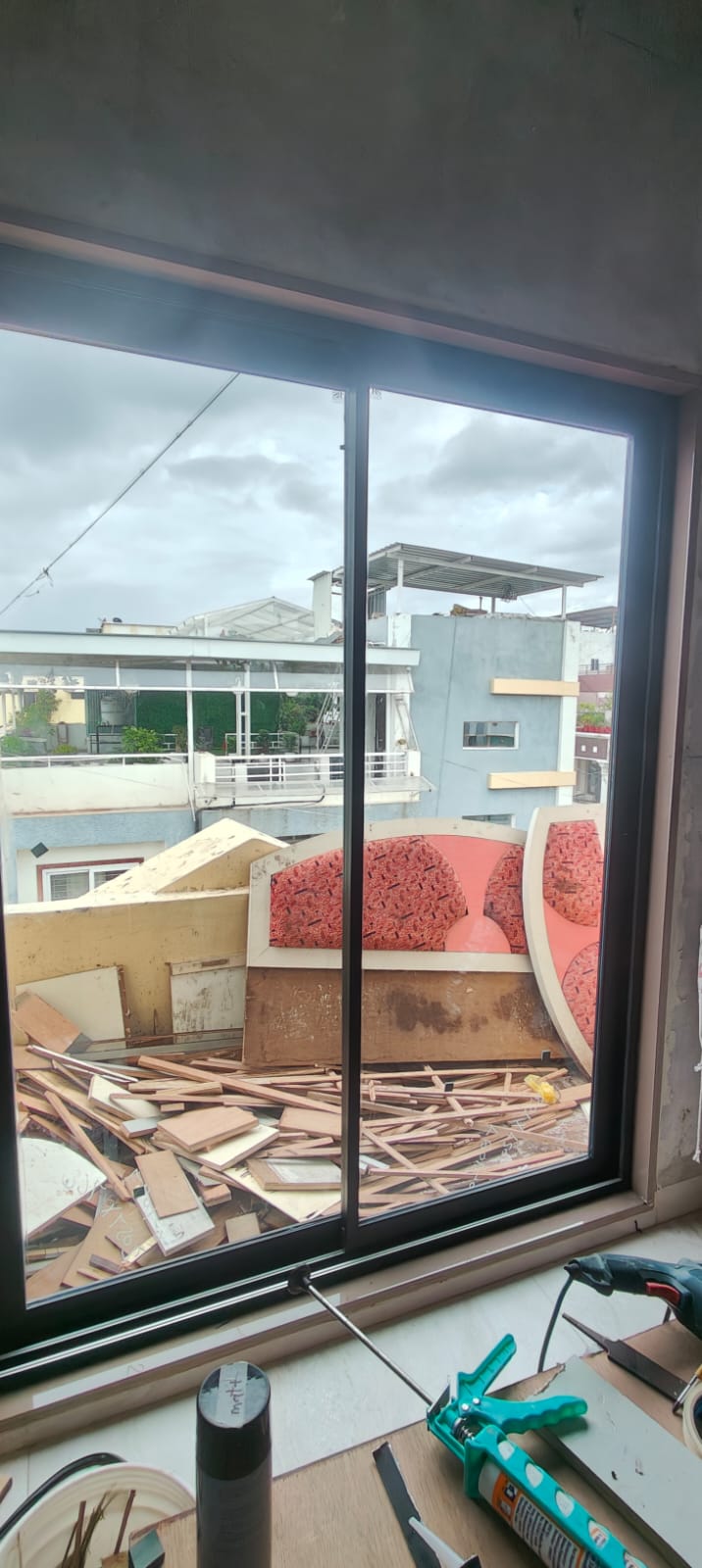

System Aluminium Windows
25mm x 65mm to 40mm x 87mm Profile Range
System Aluminium Windows
25mm x 65mm to 40mm x 87mm Profile Range
System aluminium windows are modular, factory-engineered window solutions designed with integrated profiles, hardware, and sealing for superior performance compared to locally fabricated frames. They are known for their durability, slim minimalist profiles that support large glass spans, and advanced features like thermal breaks for energy efficiency.
| Durability and Strength | High-grade aluminium alloys (like 6063-T6) resist warping, rusting, and cracking, with a typical lifespan of 40 to 60 years. |
|---|---|
| Thermal Insulation | Modern systems use thermal break technology—insulating barriers (usually polyamide) within the frame—to drastically reduce heat transfer and lower energy bills. |
| Acoustic Performance | Thicker profiles and high-quality EPDM gaskets provide superior sound insulation, often reducing external noise by up to 40 decibels. |
| Weather Resistance | Certified systems are often tested for wind-load and water-tightness, making them ideal for coastal or high-rise applications where they resist salt-spray and heavy rain. |
| Wall Thickness | Ranges from 1.2mm to 1.4mm for light-duty residential use, while premium systems and high-rises typically require 1.6mm to 2.0mm+ for better structural stability and wind resistance. |
| Profile Depth | Varies by window type, typically between 25mm and 75mm. |
| Surface Treatment | 60–80 microns thick, offering a lifespan of 18–20 years outdoors. |
| Glazing Capacity | Systems support single, double, or triple glazing ranging from 4mm to 32mm total thickness. |
| Security | Comes with Integrated SS Bars for Security |
16mm x 45mm Telescopic/Sync Sliders
16mm x 45mm Slim Profile
16mm x 45mm Telescopic/Sync Sliders
16mm x 45mm Slim Profile
16mm x 45mm telescopic and synchronized sliders are typically used in slim-profile glass sliding door systems or heavy-duty drawer applications. These systems often feature a visible side profile of 16mm and a standard profile height of 45mm, providing a minimalist aesthetic for modern interiors.
Slim Profile Sliding Door Systems
These systems are designed for space optimization and are commonly used with glass panels in offices or residential settings.
This ceiling-mounted system features a 16mm visible side profile and a 45x16mm standard profile.
| Features | Includes soft-open and soft-close mechanisms with no bottom track for an unobstructed passage. |
|---|---|
| Glass | 5mm to 8mm Clear/Fluted Toughned Glass |
| Profile | 16mm x 45mm Slim 16 Guage Profile |
| Capacity | It has a load-carrying capacity of 120kg and has been tested up to 300,000 cycles. |
| Mechanism | Synchronized movement available, Ball-bearing full extension |
| Application | Glass partitions, sliding doors, Kitchen, office, and home |
Pleated Mosquito Mesh - Honeycomb Mesh
Honeycomb Mesh
Pleated Mosquito Mesh - Honeycomb Mesh
Honeycomb Mesh
Honeycomb Pleated Mesh is a specialized, high-performance insect screen system that combines a traditional pleated design with a double-layered "cellular" structure. While standard pleated nets feature a single zig-zag layer of polyester or fiberglass, honeycomb variants create a series of hexagonal air pockets when expanded.
| Thermal Insulation | The honeycomb "cells" trap air, creating a thermal barrier that reduces temperature loss and improves cooling efficiency, especially in air-conditioned rooms. |
|---|---|
| Dual Functionality | In modern installations, it often serves as a 2-in-1 system—one layer providing insect protection (pleated mesh) and another providing blackout or light filtering (honeycomb blind). |
| Durability and Aesthetics | The hexagonal pattern offers higher tensile strength and flexibility than traditional screens. Its minimalist look makes it a popular choice for high-end residential and commercial spaces. |
| Materials | Polyester: Most common due to its durability, UV resistance, and ease of maintenance. |
| Maintenance | Generally easy to clean with a damp cloth or vacuuming, and many versions are resistant to mold and mildew. |
| Privacy & Light Control | Available in various transparencies, from sheer to blackout, it filters sunlight while maintaining privacy. |
| Room Partitions | Its structural rigidity and ease of folding make it ideal for flexible room dividers or partitions. |
| Thermal & Sound Insulation | The air-filled cells trap air to reduce temperature loss, making it highly effective for air-conditioned rooms. It also provides some degree of sound absorption. |
Pleated Mosquito Mesh - Aluminium Mesh
King Kong Mesh
Pleated Mosquito Mesh - Aluminium Mesh
King Kong Mesh
King Kong Pleated Mesh refers to a high-durability security screen system that combines the space-saving folding design of a pleated net with the strength of Aluminium panels... Unlike standard pleated nets made of polyester or fiberglass, "King Kong" variants are specifically designed for high-security applications.
| Mesh Material | Metal sheet Punched with Small Holes in a Pattern |
|---|---|
| Frame Material | Uses heavy-duty powder-coated aluminium profiles (often 3mm thickness) to provide a rust-resistant and aesthetically pleasing structure. |
| Security Mechanisms | Security-focused models frequently include lock and key facilities, making them suitable for main entrances or balconies where forced entry is a concern. |
| Design and Visibility | The pleated design allows the mesh to fold away compactly when not in use. High-quality black powder coatings are standard to reduce glare and provide high transparency. |
| Durability | These nets are corrosion-resistant and weatherproof, making them ideal for coastal or high-humidity regions. |
Pleated Mosquito Mesh - Standard
India’s Most Preferred Insect Protection System
Pleated Mosquito Mesh - Standard
India’s Most Preferred Insect Protection System
Pleated mosquito mesh is a modern, retractable insect screen that uses an accordion-like folding design to provide protection for doors and windows while saving space. When not in use, the mesh collapses neatly into a slim cassette, making it ideal for balconies, large sliding doors, and high-end residential interiors.
| Space-Efficient Design | The mesh folds or retracts into a side housing, ensuring it does not obstruct views or take up floor space when opened. |
|---|---|
| Smooth Operation | High-quality systems use a spring-less design with heavy-duty nylon cords and slide stability rollers for "one-finger" operation. |
| Durability | Many versions feature waterproof and UV-resistant coatings that prevent the mesh from sagging or degrading in sunlight. |
| Enhanced Visibility and Airflow | Fine weaving allows natural light and fresh air to circulate while effectively blocking even small insects. |
| Mesh | Polyester Mesh, Fiberglass Mesh, Stainless Steel (SS) Mesh |
| Mesh Density | 18x16 to 20x20 (warp x weft) |
| Pleat Height | 14mm, 15mm, 16mm, 19mm, and 20mm |
| Frame Material | Extruded 6063 alloy aluminium with a thickness typically between 1.0mm and 1.2mm |
| Cord System | Uses heavy-duty nylon 6 or high-tensile polyester cords |
| Closing Mechanism | Magnetic Strips |
Slide & Fold (16mm x 45mm) Slim Profile
16mm x 45mm Slim Profile
Slide & Fold (16mm x 45mm) Slim Profile
16mm x 45mm Slim Profile
Modern aluminium slide and fold systems are engineered for high-performance architectural needs, combining structural strength with advanced weatherproofing.
| Alloy Grade | Most high-quality systems use Architectural Grade Aluminium 6063-T5 or 6063-T6 for a balance of strength and surface finish. |
|---|---|
| Profile Thickness | Standard residential and commercial frames typically range from 1.6mm to 2.5mm. Thinner profiles (1.2mm–1.4mm) are generally restricted to low-wind residential areas. |
| Glass & Glazing Options | 5mm (single) to 8mm (Clear/Toughned/Fluted). |
| Weight Capacity | Heavy-duty rollers are often rated for 130kg to 150kg per sash |
Invisible Grill
Invisible Strength with Visible Gorgeous Views
Invisible Grill
Invisible Strength with Visible Gorgeous Views
Invisible grills are high-tensile stainless steel wire security systems for balconies and windows, designed to protect children and pets without obscuring views. Typically 3mm thick with 316-grade steel and nylon coating, they offer rust-resistant, high-strength protection (up to 400 kg).
Tired of the mundane grilles that everyone else has? Elevate your security without compromising style with PAC’s Invisible Grilles. These stainless-steel cable grilles offer a modern alternative to traditional metal grilles. While popular in Singapore for the past decade, they have now arrived in India through PAC India. Our Indian design for balcony safety grills is discreet and unobtrusive.
| Safety & Security | Protects against falls from high-rise buildings and offers anti-theft protection, with some systems featuring alarm sensors. |
|---|---|
| Aesthetics | Provides a clear, unobstructed view, unlike traditional iron grills. |
| Durability | Made with high-quality, corrosion-resistant materials. |
| Versatility | Suitable for balconies, windows, and staircases. |
| Material | 316 Stainless Steel with nylon coating. |
| Wire Thickness | 2mm, 2.5mm & 3mm |
| Weight Capacity | Up to 400 kg. |
| Installation | Involves vertical or horizontal cabling. |
Ghost/Invisible Slider
No channel/fitting Slider
Ghost/Invisible Slider
No channel/fitting Slider
The slide system is built into the door, making it completely invisible whether the door is closed or open.The mechanism is available in either a wall-mounted or a floor-mounted version. The supplied kit included everything required to make the sliding system - all you need to do is source / manufacture the door of your choice.
The material of the door used is not critical providing the aluminium profile is fixed to the door correctly, and the wheel kit is used when over 50kg in weight.
| Profile | Aluminim Slim Profile (16mm x 45mm) |
|---|---|
| Glass | 5mm to 12mm Clear or Fluted Toughned Glass |
Pleated Mosquito Mesh - 2-in-1
2-in-1 Pleated Mesh with Honeycomb Mesh
Pleated Mosquito Mesh - 2-in-1
2-in-1 Pleated Mesh with Honeycomb Mesh
A 2-in-1 pleated mosquito mesh is a dual-purpose window and door solution that combines a protective insect screen with a functional blind, typically a honeycomb blackout shade. This integrated system allows users to switch between keeping pests out and blocking sunlight or heat for privacy and insulation.
| Space-Saving | Combines two separate window treatments into a single slim profile, ideal for modern compact apartments. |
|---|---|
| Thermal Insulation | The honeycomb blind component traps air in hexagonal "cells," helping to regulate indoor temperatures and reduce electricity bills. |
| Versatile Operation | These systems typically operate on a spring-less, cordless mechanism with heavy-duty nylon cords for smooth, noise-free sliding. |
| Durability | Most frames are constructed from high-quality powder-coated aluminium, while the mesh is often waterproof or vinyl-coated for longer life. |
| Cleaning | According to Insect Shield, these should be cleaned using a feather duster, soft brush, or vacuum. They recommend avoiding soap, water, or scrubbing to preserve the fabric. |
